Use the Real User Monitoring (RUM) template within Dashboards to monitor the performance of Core Web Vitals across your entire site, and/or focus on a single page group.
How to create a RUM Dashboard

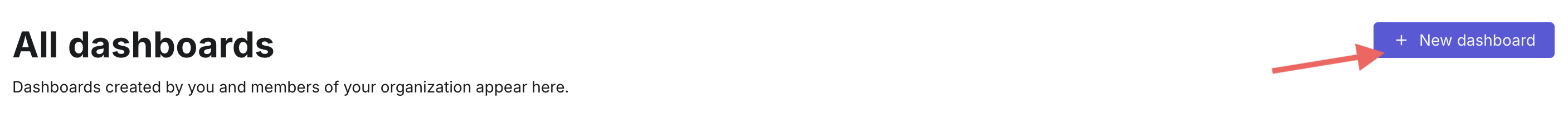

1. Navigate to Dashboards and click "Open dashboard list", followed by "+ New Dashboard".
2. From the regular dashboard templates, select "Real User Monitoring".
3. Define the context by selecting a segment and analysis scope (“Site” or “Page group”).
4. Select “Create my dashboard”.

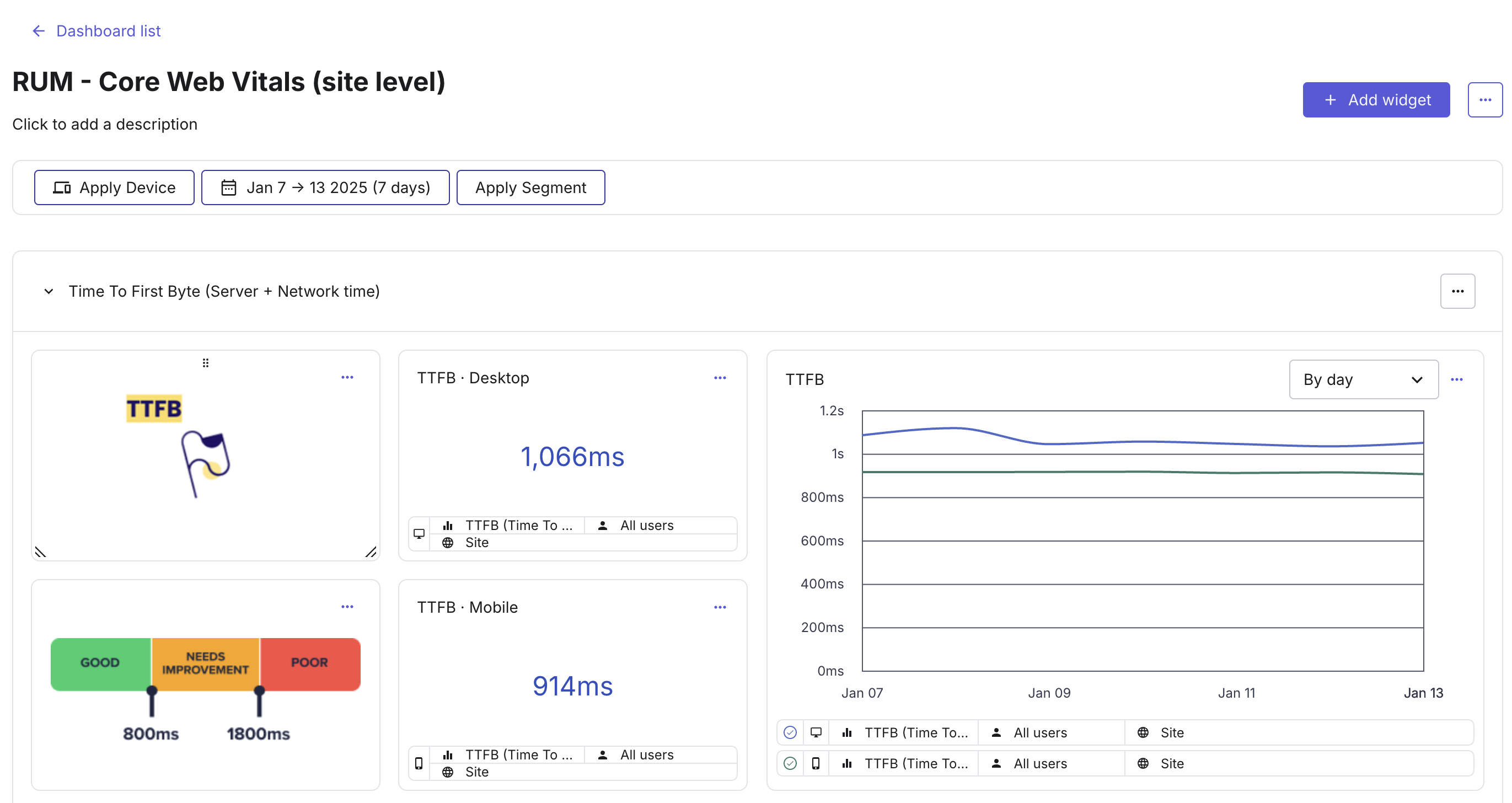

Once created, you’ll find ready-to-use widgets grouped according to each of the Core Web Vitals.
Widget groups overview

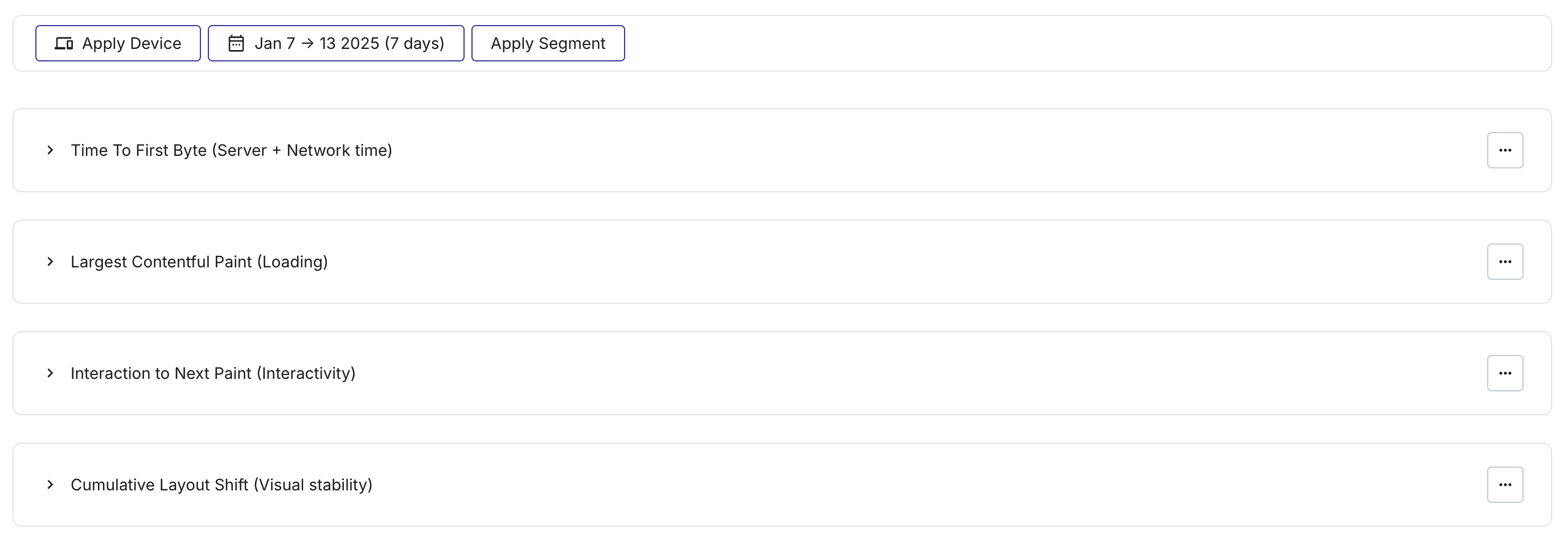

The RUM template includes four (4) ready-to-use widget groups for each of the four (4) Core Web Vitals:
- Time To First Byte (Server + Network time)
- Largest Contentful Paint (Loading)
- Interaction to Next Paint (Interactivity)
- Cumulative Layout Shift (Visual stability)
Each group contains at least five (5) widgets:
- Image for the icon of the metric
- Image for the metric guidelines (good/bad thresholds)
- Single value for the metric 75th percentile on Desktop (name example: LCP · Desktop)
- Single value for the metric 75th percentile on Mobile (name example: LCP · Mobile)
- Line Chart with 2 lines (the metric 75th percentile on Desktop and on Mobile (name example: LCP)
The TTFB group has an additional widget:
- Tableview, grouped by country, of the 75th percentile of the metric (name : Slowest countries)
The LCP group has 2 additional widgets:
- Tableview of the 75th percentile of the metric, grouped by country (name : Slowest countries)
- Tableview of the 75th percentile of the metric, grouped by resolution (name : Screen Resolutions)
